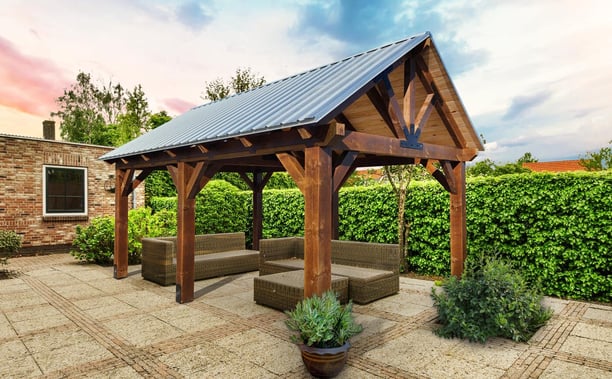

A backyard pavilion is more than a structure. It is the architectural anchor of your outdoor space. It frames gatherings, defines seating areas, and creates a sense of permanence in your landscape. But before you fall in love with a design, stain color, or roof pitch, there is one decision that matters most: size.
At Carolina Storage Solutions, we have seen it countless times. Homeowners focus on aesthetics first and guess on dimensions. Unfortunately, guessing is the biggest mistake you can make when investing in a pavilion.
The reason is simple. The “roof size” of a pavilion is often larger than the “post-to-post” measurement. Between roof pitch and our standard 24-inch eave overhangs, the total footprint and shade coverage can extend well beyond what many homeowners initially expect. That affects everything from furniture layout to property line clearance.
This complete pavilion size guide will walk you step by step through choosing the right dimensions for your backyard and your lifestyle.
Pavilion Size Guide
When browsing our catalog, you will see popular sizes like 10’x12’, 12’x20’, and 16’x24’. These measurements typically refer to the post-to-post dimensions. That means the distance between the main support posts.
However, the roof extends beyond those posts. With our standard 24-inch eave overhangs, a 12’x20’ pavilion will have a total roof footprint that extends an additional two feet on each side. In practical terms, that means:
- A 12’x20’ pavilion may require closer to 16’x24’ of total open space when accounting for overhangs.
- Shade coverage extends beyond the posts, which is excellent for comfort.
- Clearance from fences, trees, and property lines must account for the full roof footprint, not just the posts.
Roof pitch also plays a role. Our standard pitches include 8/12, 6/12, and 4/12.
- An 8/12 pitch creates a steeper, more dramatic profile and greater interior height.
- A 6/12 pitch offers a balanced, classic look.
- A 4/12 pitch has a lower slope and can be ideal in areas with height restrictions.
The steeper the pitch, the taller the structure at the peak, which can affect sight lines, HOA requirements, and proximity to your home.
Choosing the right pavilion size is not just about fitting furniture. It is about understanding the true footprint, height, and scale of the structure in your backyard.
Step 1: Define Your Purpose
Before you measure your yard, define how you will use the pavilion. Your intended purpose should drive your size decision.
The Dining Nook
If your primary goal is outdoor dining, start by thinking about your table.
A standard 6-person rectangular dining table is typically around 36 to 40 inches wide and 60 to 72 inches long. Add chairs and space for people to move comfortably around the table, and the required footprint grows quickly.
For most 6-person dining setups, we recommend:
- 10’x12’
- 10’x14’
A 10’x12’ pavilion provides enough room for the table and chairs, while still allowing comfortable circulation. A 10’x14’ gives you a bit more breathing room and flexibility for buffet tables or a grill nearby.
If you regularly host larger dinners or want to accommodate an 8-person table, stepping up to a 12’x16’ may be wise.
The key is not just fitting the table, but ensuring guests can walk behind chairs without feeling cramped.
The Outdoor Living Room
If you envision a sectional sofa, coffee table, and maybe a fire pit or mounted TV, you are creating an outdoor living room.
Sectionals can easily span 8 to 10 feet in length. Add a coffee table and side chairs, and suddenly a 10-foot width feels tight.
For this setup, we often suggest:
- 12’x16’
- 12’x20’
A 12’x16’ pavilion provides a comfortable room for a full sectional and conversation layout. A 12’x20’ creates a more expansive feel, ideal if you want to separate seating into zones or include additional lounge chairs.
The extra depth also helps if you plan to install ceiling fans, lighting, or even partial privacy walls in the future.
The Entertainment Hub
For homeowners who love hosting large gatherings, birthday parties, or holiday cookouts, think bigger.
If you plan to incorporate:
- An outdoor kitchen
- A long farmhouse dining table
- Multiple seating areas
- A bar or beverage station
You will likely want at least:
- 16’x24’
- Or larger
A 16’x24’ pavilion becomes a true entertainment hub. It can comfortably cover an outdoor kitchen on one side and a dining or lounge area on the other.
For especially unique spaces, we also offer custom-sized options. If your yard is narrow, sloped, or has existing hardscape you want to integrate, a custom pavilion can be designed to fit your exact layout.
Step 2: Accounting for the Overhang
One of the most overlooked aspects of how to measure for a pavilion is accounting for the overhang.
Our standard 24-inch eave overhangs provide:
- Expanded shade coverage
- Better protection from rain
- A more substantial architectural presence
But they also extend the total roof size beyond the post-to-post dimensions.
For example:
- A 10’x12’ pavilion with 24-inch overhangs effectively shades an area closer to 14’x16’ at the roof level.
- A 16’x24’ pavilion can require significantly more total clearance than the base measurement suggests.
When planning placement, consider:
- Distance to property lines
- Proximity to your house
- Nearby trees and branches
- Existing patios or decks
It is important to verify local setback requirements. Many municipalities measure setbacks from the furthest projection of the structure, which includes the roof overhang.
The overhang is a feature, not a flaw. It enhances comfort and aesthetics. You simply need to plan for it properly.
Step 3: The Mock-Up Method
Before you place an order, try what we call the mock-up method.
This simple DIY step can save you from second-guessing your decision.
Here is how:
- Measure the post-to-post dimensions of the pavilion you are considering.
- Use garden hoses, spray paint, or wooden stakes and string to outline that rectangle on your lawn or patio.
- Then extend an additional 24 inches on each side to represent the roof overhang.
Walk the space. Stand inside it. Place patio furniture within the outline. Visualize traffic flow.
Ask yourself:
- Does it feel cramped or spacious?
- Is there enough room between the pavilion and the house?
- Will doors and windows still open freely?
- Does it overpower the yard or feel proportional?
Seeing the dimensions physically outlined on your property often provides clarity that measurements on paper cannot.
Foundation Requirements
Regardless of size, every pavilion requires a proper foundation.
According to our catalog specifications, you will need either:
- A level concrete pad
- Or properly spaced concrete piers
The foundation must be square, level, and structurally sound. A poorly prepared base can lead to installation challenges and long-term structural issues.
When planning your pavilion size, also consider:
- Whether your existing patio is large enough
- If you will need to pour additional concrete
- Drainage and grading around the structure
A larger pavilion may require expanding your hardscape, so it is wise to factor that into your overall project budget and timeline.
Custom Sizes for Unique Backyards
Not every backyard is a perfect rectangle. You may have:
- A pool with curved coping
- A narrow side yard
- A sloped landscape
- Mature trees you want to preserve
That is why we offer custom size options for unique locations. If standard sizes like 10’x12’, 12’x20’, or 16’x24’ do not align with your available space, our team can help design a pavilion that fits seamlessly into your environment.
Custom sizing ensures that your pavilion looks intentional, not squeezed into a corner or awkwardly oversized.
Bringing It All Together
Choosing the right pavilion size is about more than picking numbers from a catalog. It requires thoughtful consideration of:
- Your intended use
- Your furniture layout
- Roof pitch and overall height
- 24-inch eave overhangs
- Property line setbacks
- Foundation requirements
- Overall backyard proportions
When done correctly, the pavilion will feel like it was always meant to be there. It will enhance your home’s architecture, increase functionality, and create a comfortable gathering space for years to come.
If you are unsure where to start, that is exactly what our experts are here for. Call Carolina Storage Solutions at (877) 305-4277 to discuss your backyard layout, goals, and measurements. We will help you select the ideal size and ensure your pavilion fits your property perfectly.
With the right planning and the right guidance, your pavilion will not just fit your yard. It will transform it.
